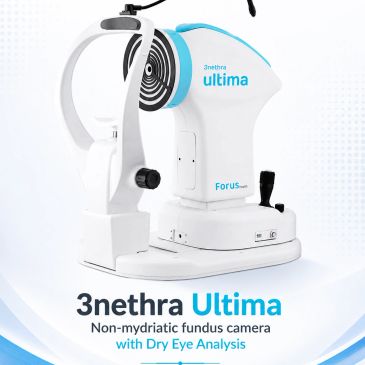

3nethra Ultima, Non-mydriatic Fundus Camera

3nethra Ultima is a compact, multifunctional digital fundus imaging system designed to deliver high-resolution retinal and anterior-segment imaging with advanced AI-powered analysis. With a 20 MP imaging sensor, support for both mydriatic and non-mydriatic imaging, and integrated clinical analysis capabilities, it provides a versatile solution for modern ophthalmic practices.

Its advanced capabilities extend beyond retinal imaging to include non-contact dry eye and corneal assessment, making 3nethra Ultima a comprehensive platform for efficient ocular screening and diagnostic evaluation.

Capture highly detailed images of the retina and anterior segment with a 20-megapixel CMOS sensor for enhanced visualization and clinical assessment.

Provides the flexibility to perform retinal imaging with or without pupil dilation, supporting diverse clinical workflows and patient requirements.

A standard 45° field of view can be expanded to 75° through montage, enabling broader retinal assessment and visualization of peripheral regions. The system also supports 105° montage with internal fixation according to the manufacturer's specifications.

High Dynamic Range imaging enhances visualization of fine retinal details, including areas around the optic disc and peripheral retina.

The optional Dry Eye Diagnostic Module enables non-contact ocular surface assessment, including:

• Tear Break-Up Time (TBUT)
• Lipid Layer Interferometry (LLI)
• Tear Meniscus Height (TMH)
• Meibomian Gland Dysfunction (MGD)
• Fluorescein Imaging
• Demodex assessment
• Pink Eye / Conjunctivitis assessment

Integration with FH-POISE™ provides AI-driven analysis supporting assessment of retinal, corneal, and dry-eye conditions. The platform is designed to assist with screening for conditions including Diabetic Retinopathy, Glaucoma, ARMD and Cataract, among others.

Auto-focus and intelligent imaging algorithms help simplify image acquisition, reduce operator effort, and support efficient clinical workflows.

The integrated 9-point internal fixation system helps maintain consistent patient alignment and facilitates imaging of different retinal regions.

Compatibility with FH TeleCare and telemedicine platforms enables remote screening, image sharing, and teleophthalmology workflows—particularly valuable for outreach and remote eye-care programs.

One Platform. Multiple Clinical Applications.

• High-definition 20 MP imaging
• Mydriatic & non-mydriatic capability
• 45° standard FOV
• Up to 75° wide-field imaging through montage
• 105° montage with internal fixation
• HDR retinal imaging
• Anterior segment imaging
• Advanced non-contact dry eye assessment
• AI-powered clinical insights
• Compact, monolithic design
• Telemedicine compatibility
• Non-invasive and patient-friendly imaging

Retinal Imaging

• Diabetic Retinopathy Screening
• Glaucoma Assessment
• Age-Related Macular Degeneration (ARMD)
• Retinal and optic-disc evaluation
• Cataract-related assessment

Anterior Segment & Ocular Surface

• Dry Eye Evaluation
• Meibomian Gland Dysfunction
• Tear Film Assessment
• Corneal Assessment
• Demodex Detection
• Pink Eye / Conjunctivitis Assessment

Image Sensor: 20 MP CMOS

Minimum Pupil Diameter: ≥ 3 mm

Optical Resolution: 8–14 µm

Fundus Working Distance: 38 mm

Standard: FOV45°

Wide: FOV75°

Montage: Up to 105° with internal fixation

Refractive Compensation: ±15 D

Focus: Auto / Manual

Fixation: External & 9-point Internal

Image: Formats: PNG, JPEG, DICOM

Interface: USB 3.0

Observation Light: IR LED

Flash Source: White LED

AI Analysis: FH-POISE™

Power: USB Type-C, 5V 3A / 15W

Weight: 14 kg with stand

*Specifications are based on the manufacturer's current published information and may be subject to change.

3nethra Ultima combines high-resolution fundus imaging, anterior-segment imaging, AI-powered analysis, dry-eye assessment, and telemedicine connectivity in a compact clinical platform—helping eye-care professionals achieve faster screening, better visualization, and more informed clinical decisions.
