SensorTek (USA) Bi-aspheric Lenses

Precision Optics. Exceptional Value. Trusted Performance.

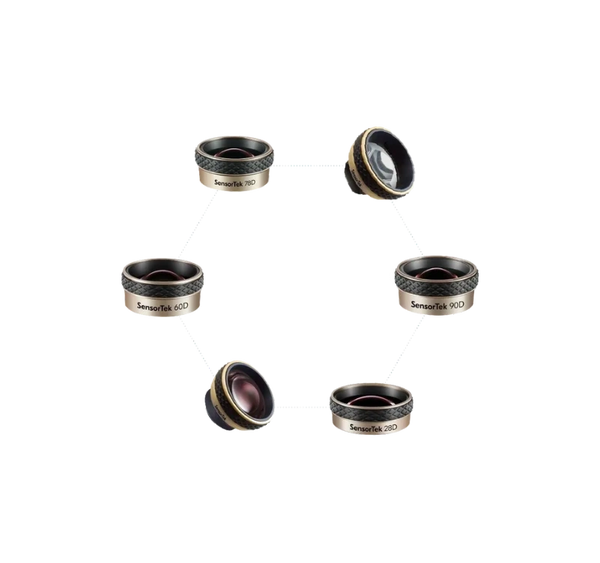

Engineered for clinical excellence, the SensorTek Diamond Series combines bi-aspheric optics, diamond hard coatings, and ergonomic design to deliver crisp imaging and durability, particularly in small pupil examinations.

• Bi-Aspheric Optics – High-resolution imaging with reduced peripheral distortion
• Evaporated Diamond Hard Coating – Exceptional scratch resistance and longevity
• Anti-Reflective Coating – Reduces glare and improves contrast
• Ultralight Aluminum Alloy Housing – Comfortable, stable handling
• Black “Sure Grip” Ring – Ergonomic, non-slip control


Diamond 20D

• Magnification: 3.0x
• Field of View: 53°
• Clinical Uses: High-resolution imaging of the macula and posterior pole


Diamond 28D

• Magnification: 2.1x
• Field of View: 53°
• Clinical Uses: Versatile lens for general diagnostic use


Diamond 60D

• Magnification: 0.96x
• Field of View: 68°
• Clinical Uses: Balanced magnification and wider field for posterior segment evaluation


Diamond 78D

• Magnification: 0.77x
• Field of View: 80°
• Clinical Uses: All-purpose lens ideal for posterior pole imaging


Diamond 90D

• Magnification: 0.64x
• Field of View: 75°
• Clinical Uses: Wide-field imaging, optimized for examinations through small pupils

• Primary Lens Kit (3-Mirror)
  Includes: 3-Mirror, 90D, and 28D
  Ideal for: Full anterior and posterior segment assessment
• Primary Lens Set (4-Mirror)
  Includes: 4-Mirror, 90D, and 28D
  Ideal for: Gonioscopy and posterior segment visualization


Optimized for clinical precision and built to last, the SensorTek Diamond Series is a trusted choice for ophthalmologists who demand performance, value, and clarity in every exam.

High-Performance Optics • Sterile Convenience • Trusted Clarity

• Anti-Reflective Coating
  • Minimizes glare and light scatter
  • Enhances image contrast
  • Maintains full laser transmission

• Enhanced Image Quality
  • Bi-aspheric optics deliver high-resolution images
  • Reduces distortion for superior visual clarity

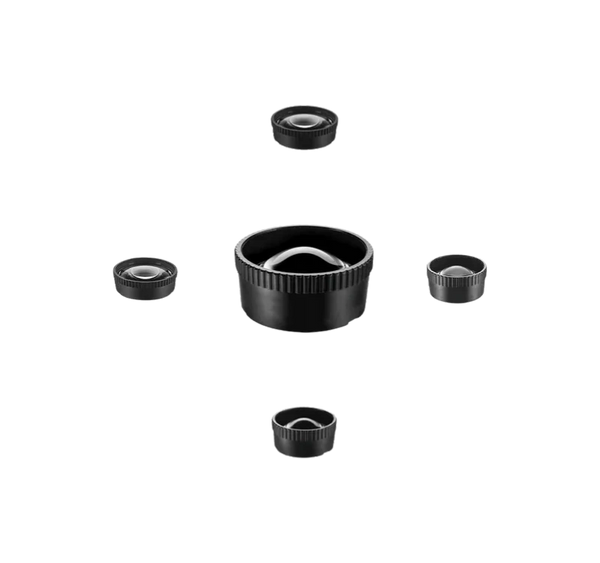

• Sterile & Single-Use
  • Each lens is individually sealed in a sterile pouch
  • Eliminates risks of scratches, watermarks, or damage from reprocessing

• Wide Range of Options
  • Available in various models to meet diagnostic and surgical needs
  • Models include: 20D, 28D, 60D, Osher 78D, and 90D

• Packaging
  • Sold in boxes of 10 lenses
  • Ready-to-use, single-use format ideal for clinics and ORs


• 20D Lens
  • 3.0x magnification of fundus
  • 53° field of view
  • 0.33x laser spot magnification

• 28D Lens
  • 2.1x magnification of fundus
  • 53° field of view
  • 0.47x laser spot magnification

• 60D Lens
  • 0.96x magnification of fundus
  • 68° field of view
  • No laser spot magnification listed

• Osher 78D Lens
  • 0.77x magnification of fundus
  • 80° field of view
  • No laser spot magnification listed

• 90D Lens
  • 0.64x magnification of fundus
  • 75° field of view
  • No laser spot magnification listed
